FlowDeck Double-Sided Drainage Mat
FlowDeck Double-Sided Drainage Mat
Applications/Uses:
An easy-to-install, low-profile drainage layer for artificial turf systems over decks, rooftops, balconies, terraces and more. Double-sided geotextile and a roll format make FlowDeck a practical alternative to individual drainage tiles.

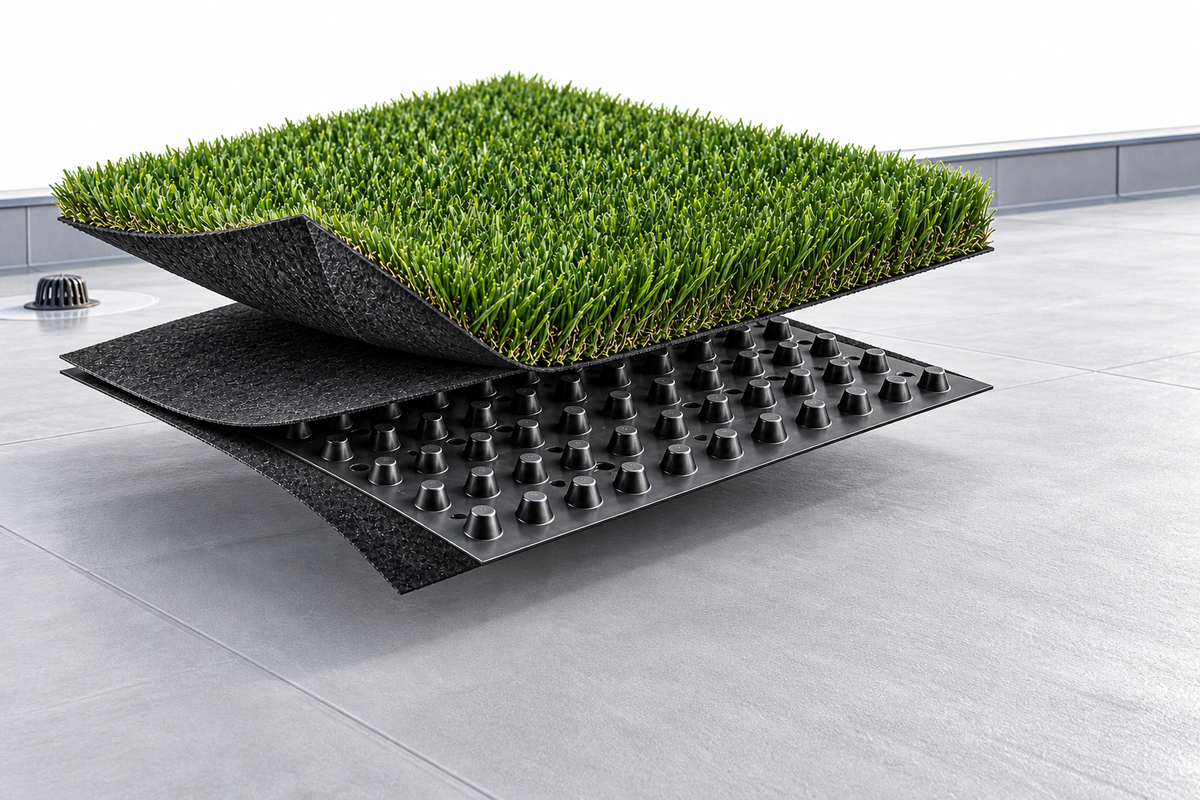

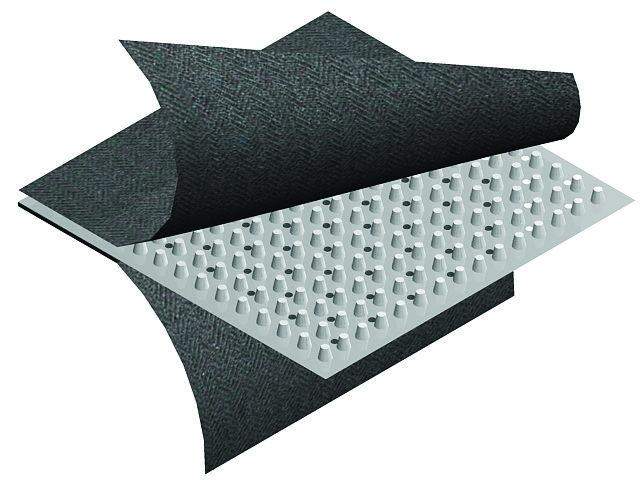

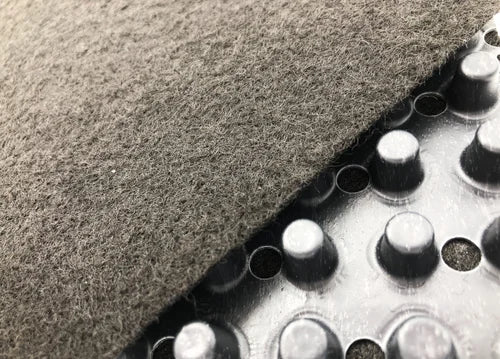

FlowDeck is a low-profile, roll-format drainage layer for artificial turf over suitable rooftops, decks, balconies and terraces. Its dimpled, perforated core provides a continuous path for water to move toward designated drainage exits. Nonwoven geotextile bonded to both sides helps separate adjacent materials and protect underlying surfaces.

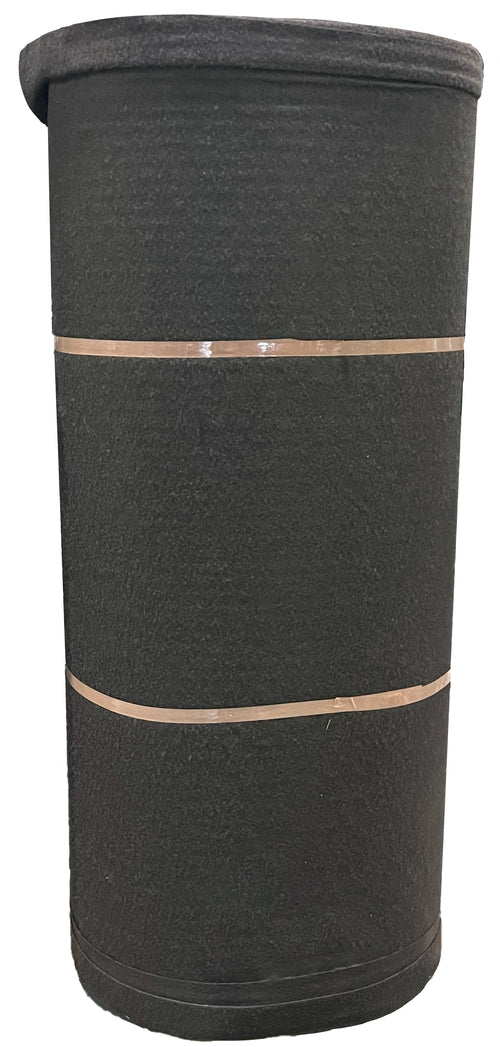

Roll it out instead of placing individual drainage tiles. The 4 ft × 50 ft format covers 200 sq ft per roll and is easy to fit to the project layout.
| Roll size: 4 ft × 50 ft |
Coverage: 200 sq ft per roll |
| Nominal thickness: 0.25 in (6.35 mm) |
Roll weight: 31 lb |
| Typical compressive strength: 9,000 psf |
Construction: Double-sided geotextile and dimpled core |
Outdoor installation: Maintain a 1/4-inch gap between adjacent rolls to allow for movement caused by temperature changes. Provide positive slope and designated drainage exits. Contact ReliaTurf for full installation instructions and confirm project-specific requirements before installation.
